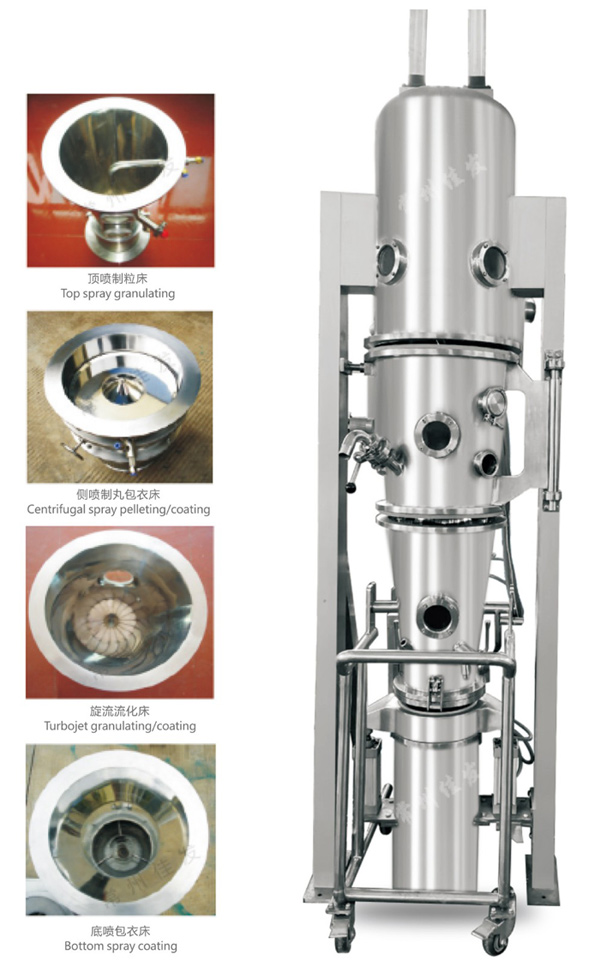

FLP multifunctional fluidized granulation coating experimental machine
The powder particles of the material are in a circular fluidized state in the raw material container (fluidized bed), preheated and mixed by purified heated air, and the adhesive solution is atomized and sprayed, causing several particles to aggregate into agglomerates containing the adhesive.
13606122988
Details




Parameters
Project specifications

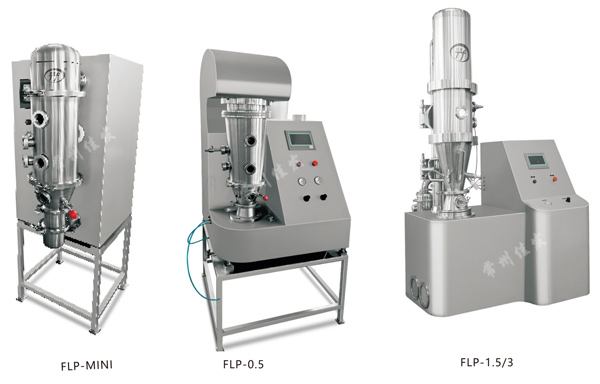

FLP-Mini Desktop
FLP-0.5 Desktop
FLP-1.5 Desktop
FLP-3 Desktop/Vertical
FLP-5 Desktop/Vertical
Production capacity(Kg/batch)
0.05-0.2
0.2-0.5
0.5-1.5
1-3
3-5
Fluid applicability(g/cm3 )
<1.3
Finished product moisture content(%)
Up to 0.5 minimum
Container volume (L)
2.5-3
3-3.8
3-7
6-10
8-15
Diameter (mm)
200
250
300
350
400
Fan power (Kw)
0.75
2.2
3
3
4
Electric heating (Kw)
1.5
1.5
3
6
9
Rotating motor power (Kw)
0.18
0.37
0.55
0.75
Compressed air pressure (Mpa)
0.4-0.6
Compressed air consumption (m3 / min)
0.2
0.3
0.35
0.6
0.6
Operating temperature (° C)
Adjustable at room temperature of -100 ° C
Main dimensions of the product(L×W×H)
Please refer to the installation layout for details

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
