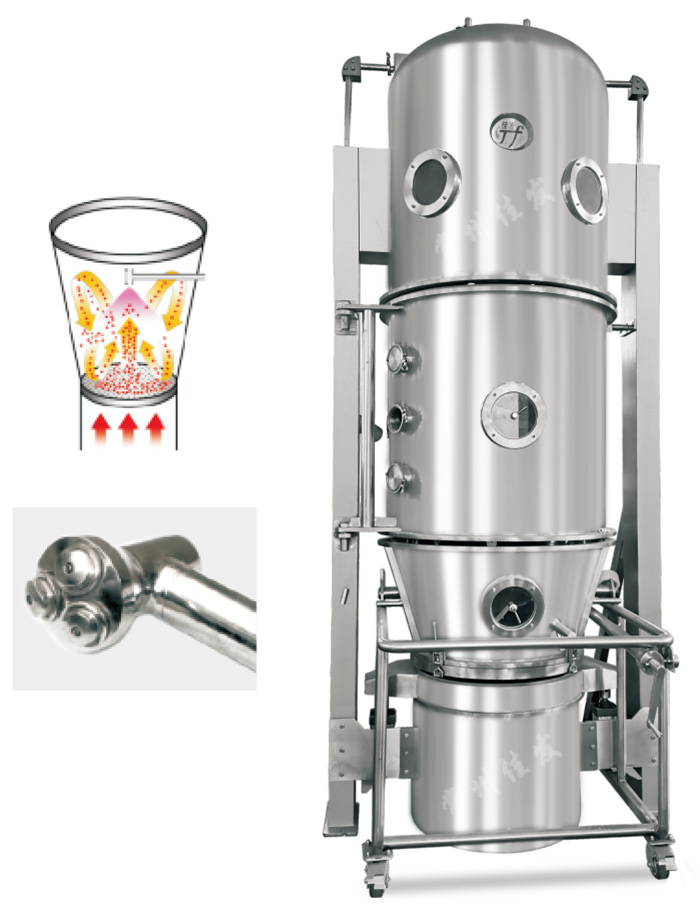

FL-B boiling granulator (one-step granulator)
The boiling granulator is mainly used for powder material mixing, granulation, drying, and particle "top spraying" coating operations in industries such as medicine, food, and chemical engineering. For example, tablet granules, instant drinks, and seasoning granules. This machine is designed and manufactured according to the standard JB20014-2004 "Medicinal Boiling Granulator".
13606122988
Details

Application Overview

★The boiling granulator is mainly used for powder material mixing, granulation, drying, and particle "top spraying" coating operations in industries such as medicine, food, and chemical engineering. For example, tablet granules, instant drinks, and seasoning granules.

★This machine is designed and manufactured according to the standard JB20014-2004 "Medicinal Boiling Granulator".


Equipment characteristics

★The mixing granulation drying step method meets the process requirements.

★Double capture filter bag system, thorough ash cleaning.

★Multi fluid atomizer ensures uniform particle formation and extremely low powder content.

★Optional explosion-proof design with 2 bar.

★Design, manufacture, and engineering configuration layout according to GMP specifications.

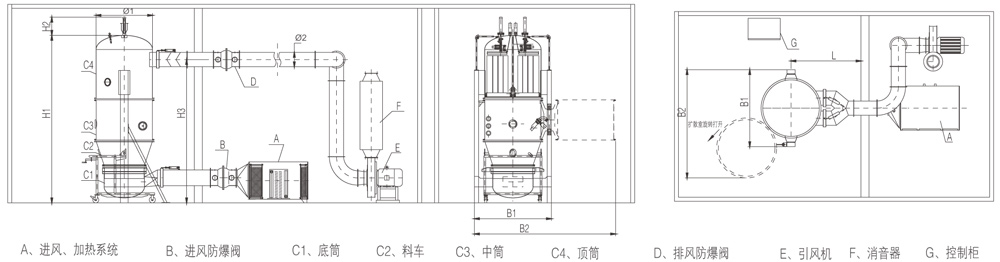

Outline Dimensional Drawing


Parameters
Project specifications
3
5
15
30
45
60
90
120
150
200
300
500
800-1000

Volume of raw material container

L
12
22
45
100
155
220
300
420
550
670
1000
1500

Design according to user requirements

Production capacity

Kg/batch

3
5
15
30
45
60
90
120
150
200
300
500

Steam

Pressure

Mpa
0.4-0.6

Consumption

Kg/h
10
18
35
60
99
120
130
140
161
180
310
400

Fan power

kw
3
4
4
5.5
7.5
11
15
18.5
22
22
30
45

Electric-heating power

kw
6
9











Noise

dB
Fan isolation processing noise below 75 decibels

Compressed air

Pressure

Mpa
0.6

Consumption

m3/min
0.3
0.3
0.6
0.6
0.6
0.9
0.9
0.9
0.9
1.1
1.3
1.5

Host size

H1(mm)
2600
2600
2100
2250
2250
2850
2850
2850
3050
3300
3500
3850
H2(mm)


250
320
420
490
540
590
640
690
790
890
H3(mm)


1900
2050
2050
2600
2600
2600
2600
3000
3280
3630
B1(mm)
640
740
1010
1160
1320
1460
1560
1660
1760
1860
2060
2260
B2(mm)


1500
1800
2060
2460
2660
2800
3060
3260
3660
4060
?1(mm)
300
400
550
700
860
1000
1100
1200
1300
1400
1600
1800
?2(mm)
150
180
180
180
250
280
280
280
315
315
355
385
L(mm)
850
1000
1100
1250
1530
1530
1530
1650
1650
1650
1750
1850

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.

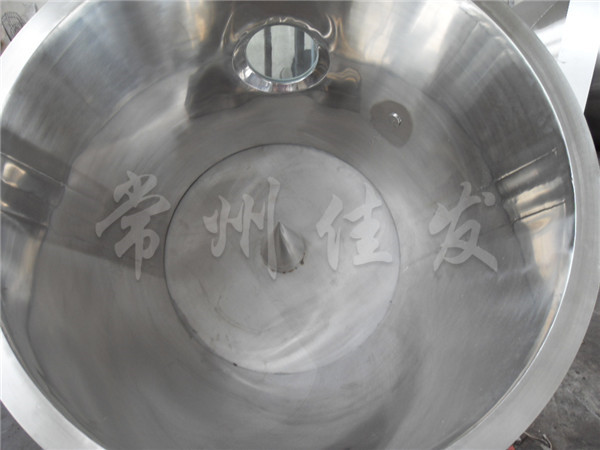

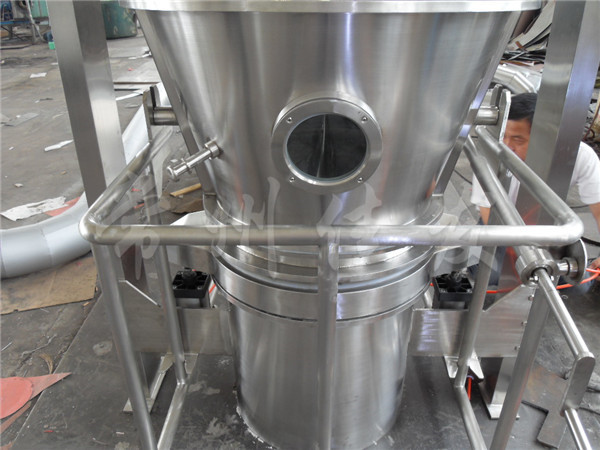

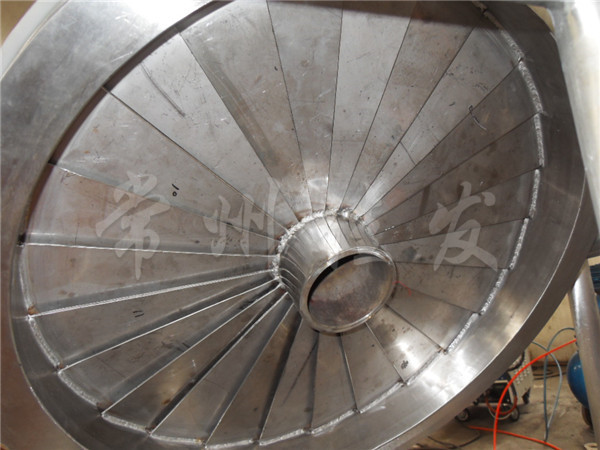

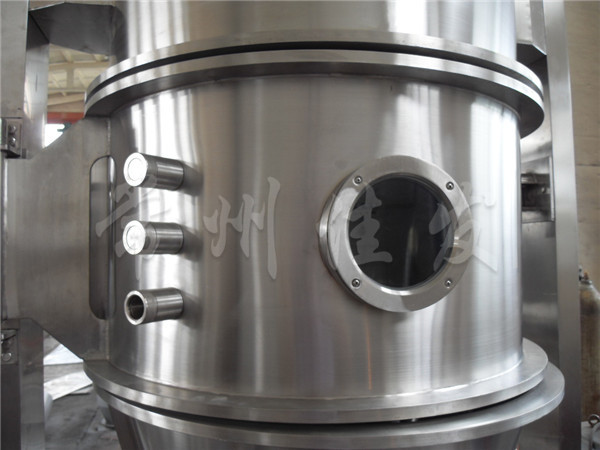

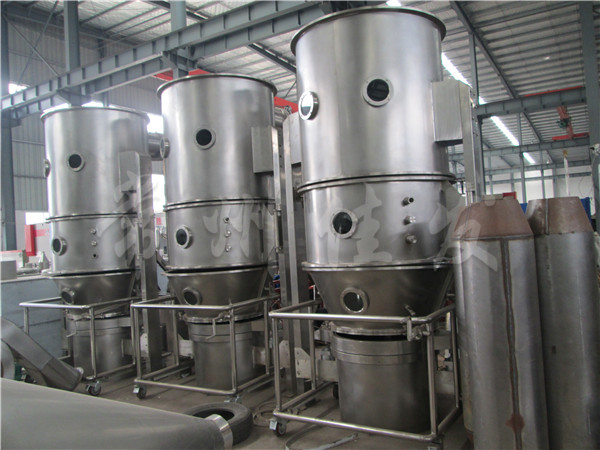

Photos
